25-ton MH25, Machinery Hauler Trailer
Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
Feature Photo Description
The MH25 is a 25-ton capacity easy-to-load "carry all" lowboy.
Built on a four-spring suspension with 215/70R low-profile tires, it has a low deck height AND ample ground clearance.

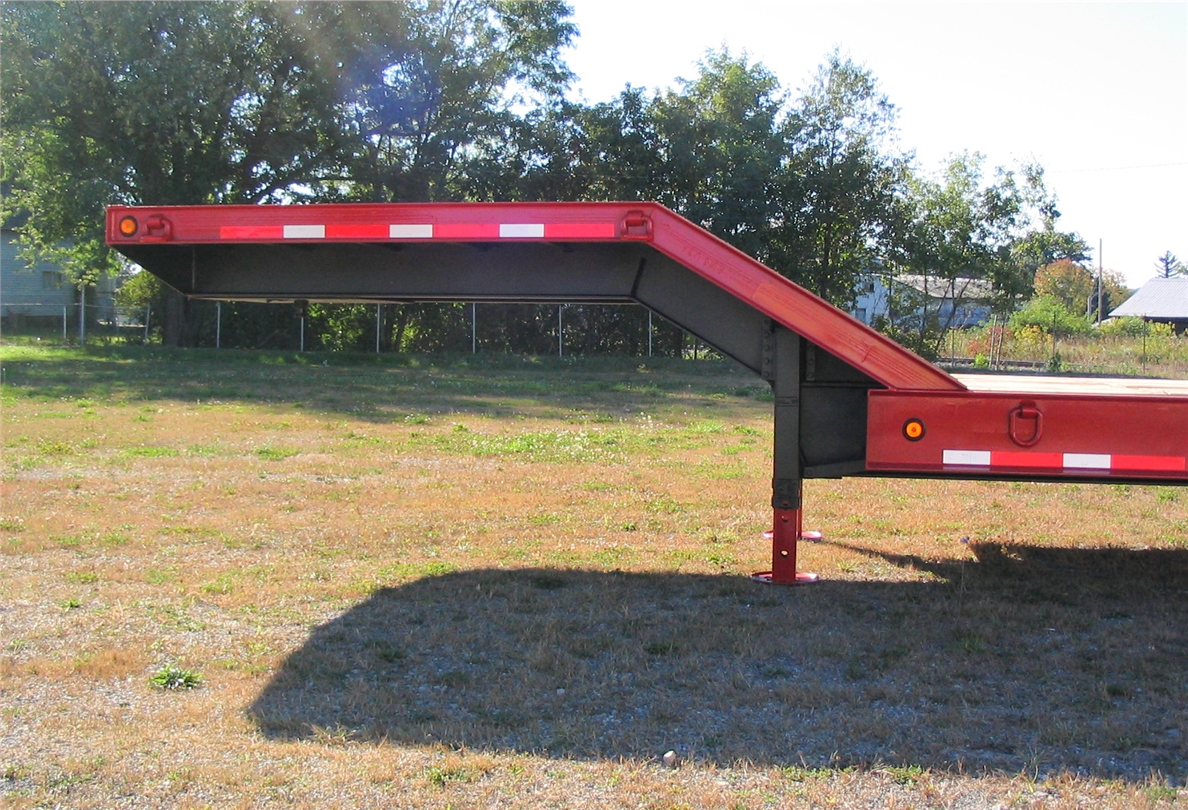

The full width gooseneck can handle machinery or cargo.
Built on a four-spring suspension with 215/70R low-profile tires, it has a low deck height AND ample ground clearance.
The full width gooseneck can handle machinery or cargo.
Internal Code
MH25L86/48/22/102/2XSP
Code
441-000
Name
MH25
Model Series
Fixed Gooseneck Trailers
Trailer Type
Machinery Hauler
Trailer Use
Rear Loading: Fixed Gooseneck
Tons
25
Capacity
25.0-ton (22.7-tonnes)
Deck Style
Platform
Deck Length
22'-0" (6.7-meter)
Deck Height LD
372" (9.4-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
50,000-pounds (22,680 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
2 axles
Suspension
44,800 lb. capacity tandem axle multi-leaf 4-spring
Axle Type
22,500 lbs. capacity with oil-bathed bearings
Tires
215/75R17.5(H) low-profile tubeless radial
Wheels
17.5 x 6.75 8-hole steel disc
Brakes
12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
- Fixed, full width oak-covered gooseneck
- Pin type landing legs
- Oak-covered 30º slope from deck to gooseneck
- Full 1 3/4" air-dried oak decking
- Total (14) bent lashing D's
- Trunnions between wheels
- Oak-covered 14º sloped beavertail
- Center rear frame 1/4" smooth cover plate
- Dual spring-assisted "E–Z Flip" oak-covered rear loading ramps, laterally adjustable
- LED lights: US DOT-approved rubber-mounted with sealed wiring and 7-wire socket
- Remote air tank drain
- Flag holders
- Epoxy primer; Rogers Red or Black industrial enamel finish coat:
(hover to see samples) - Pin type landing legs
Optional Equipment Bullets
- Two-speed landing gear package
- Gooseneck toolbox with steel or wooden lid
- Additional bent lashing D's
- Ladder style "E–Z Flip" rear ramps
- Hydraulic rear loading ramps with power pack
- Aluminum disc wheels
- Larger 235/70R radial tires
- Mechanical backup warning alarm
- Other Rogers finish colors:
(hover to see samples) - Gooseneck toolbox with steel or wooden lid
Optional Equipment Link
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|

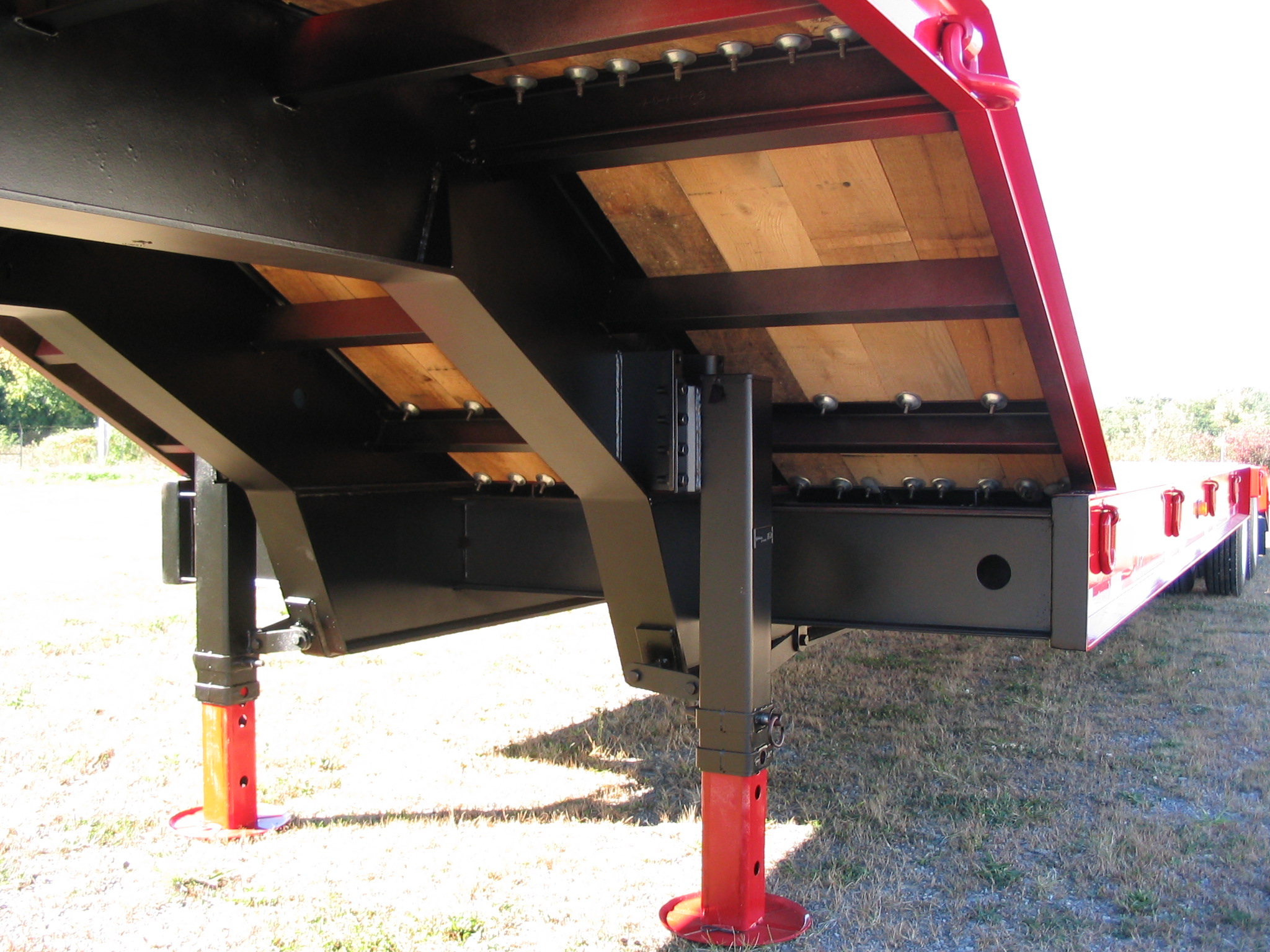

The durable pin type parking legs are easy to operate and have a static capacity of 40,000 lb. |
|
|
|
|
The gooseneck beams and main beams are fabricated of 100,000 psi minimum yield steel for greater strength with less weight. |
|
|
|
|

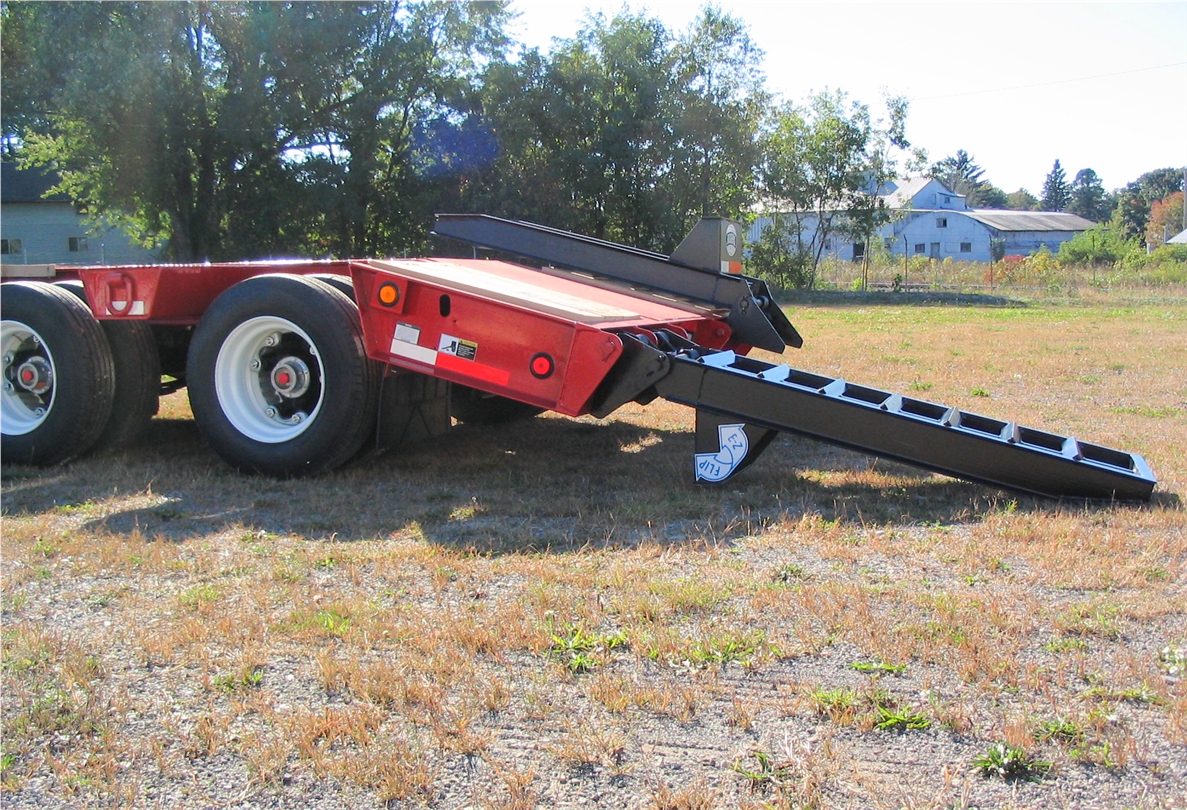

"E–Z Flip" 60" loading ramps with the 62" sloped beavertail reduce the climb angle for machinery. |
|
|
|
|

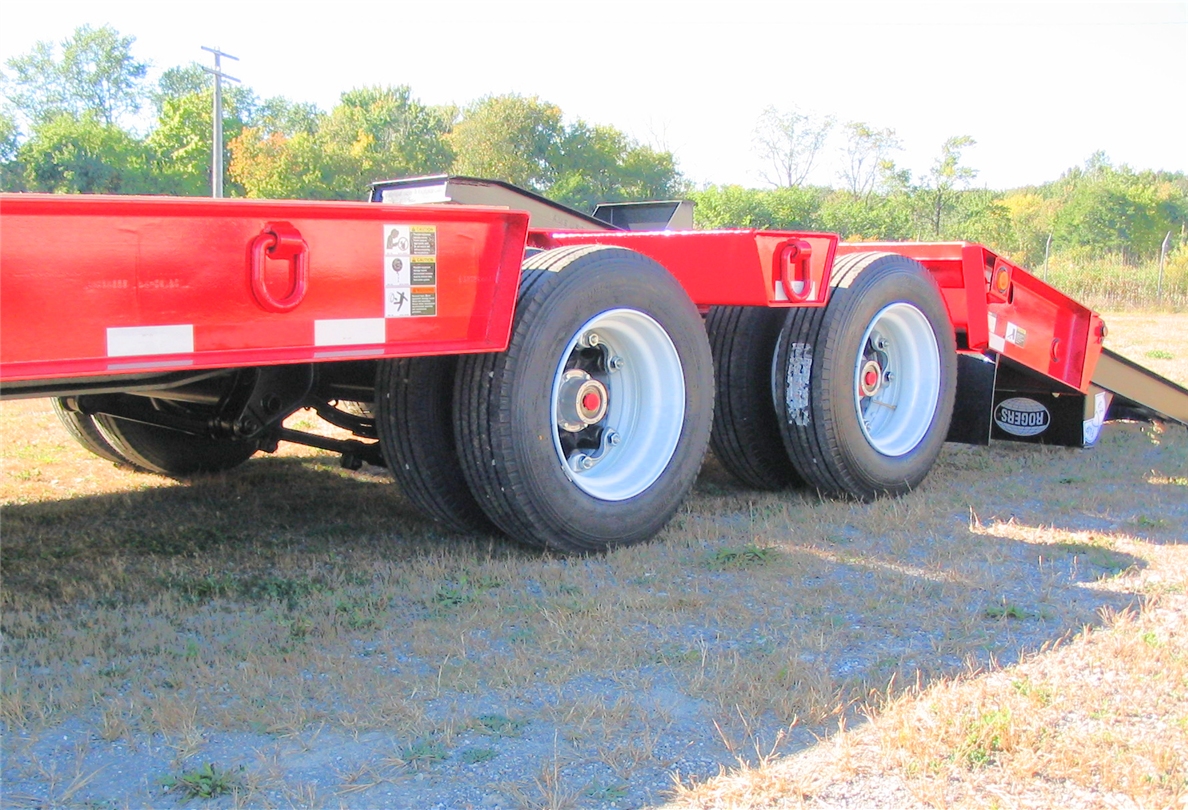

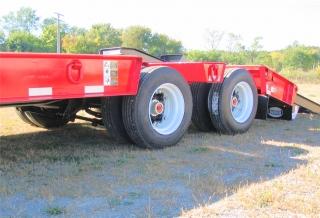

The multi-leaf four-spring suspension provides a smooth, stable ride. |
Request a Quote for 25-ton MH25, Machinery Hauler Trailer, Model Code 441-000
