65-ton FG65L-3X, Specialized Trailer
Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
Feature Photo Description
This 65-ton ROGERS fixed gooseneck trailer is designed to carry steel coils between processing areas of a steel mill.

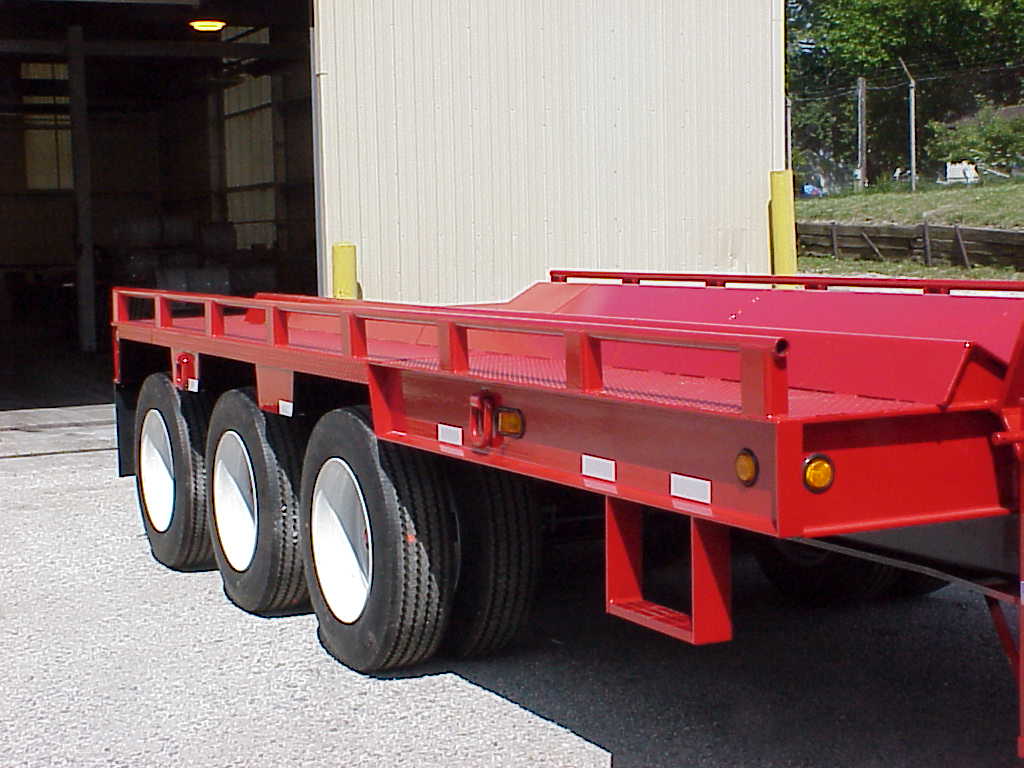

It has a 3-axle heavy-duty spring/walking beam suspension and large 275/70R H(16) tires.
It has a 3-axle heavy-duty spring/walking beam suspension and large 275/70R H(16) tires.
Internal Code
FG65L84/51/20/102/3XSP
Code
680-000
Name
FG65L-3X
Model Series
Custom Series
Trailer Type
Specialized
Trailer Use
Coil Trailer
Tons
65
Capacity
65.0-ton (59.0-tonnes)
Deck Style
Custom
Deck Length
20'-0" (6.1-meter)
Deck Height LD
528" (13.4-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
130,000-pounds (58,967 kilograms)
Load Con Length
10'-0" (3.0-meter)
Axles
3 axles
Suspension
90,000 lb. capacity tri-axle severe-duty spring walking beam
Axle Type
30,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Optional Equipment Link
No Standard Optional Equipment Available
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|

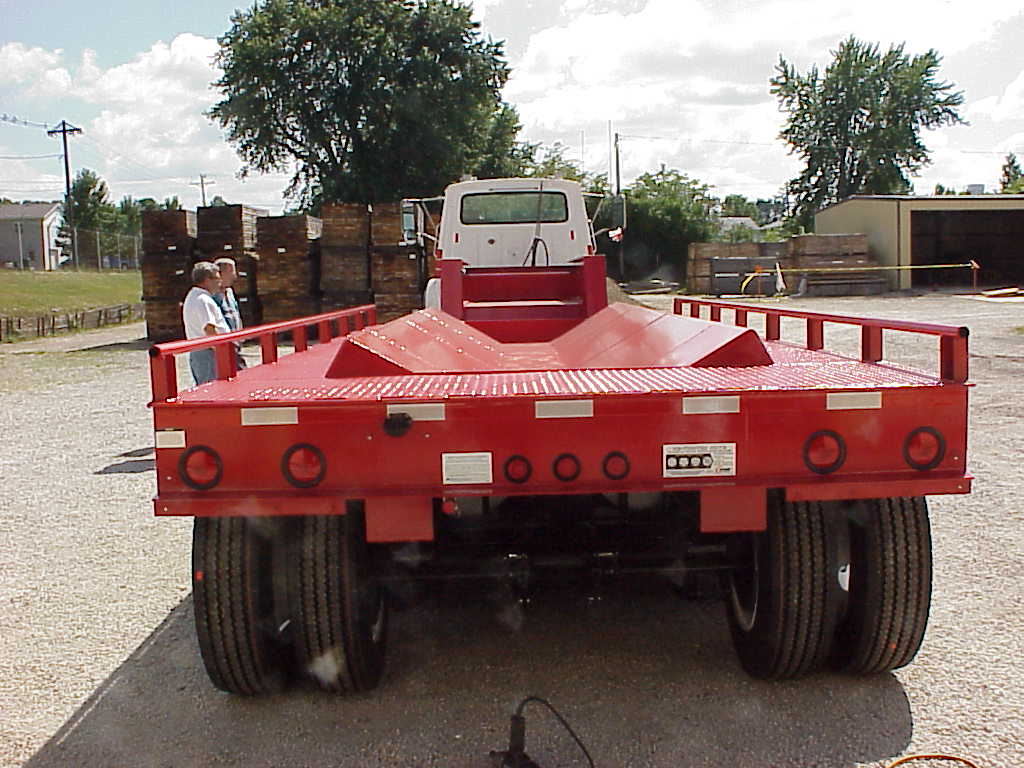

The deck contains a well designed to haul a variety of steel coil sizes positioned length-wise for efficient use of the space. The steel deck along the sides of the well enables the operator to easily access the coil(s). |
|
|
|
|
A safety step and side rails are installed to customer specification. |
|
|
|
|

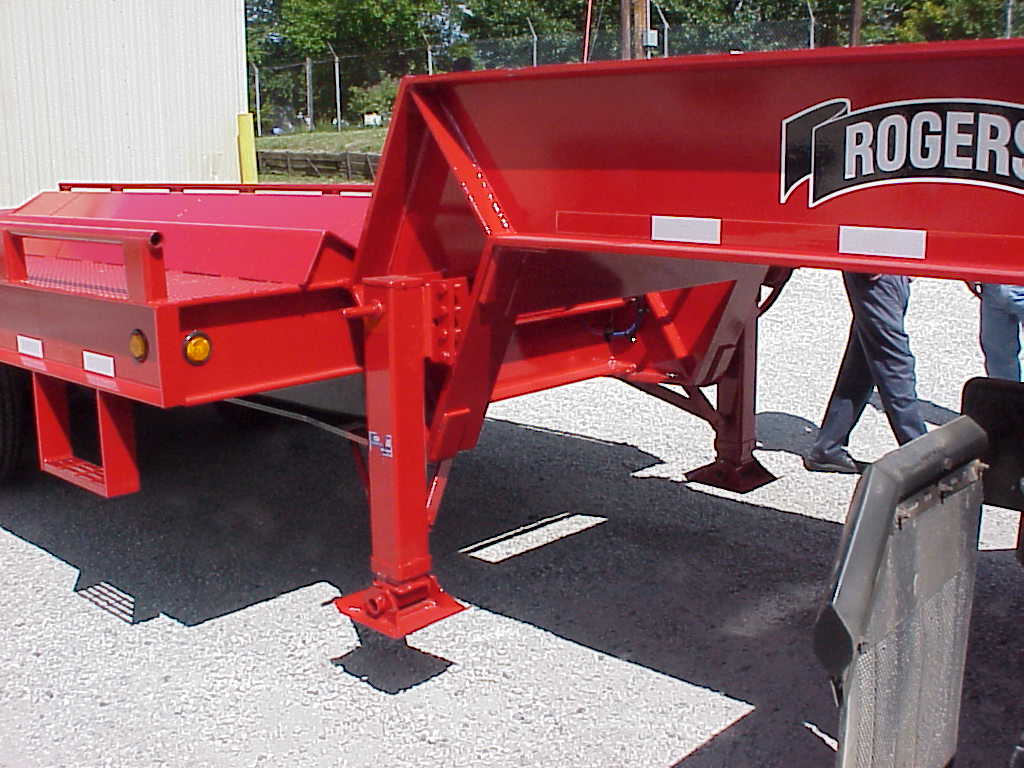

Heavy-duty two-speed landing gear makes parking easier and has a higher static load capacity than standard pin-type legs. |
