55-ton SP55DS-BA-R4, Detachable Gooseneck Trailer
Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
Feature Photo Description

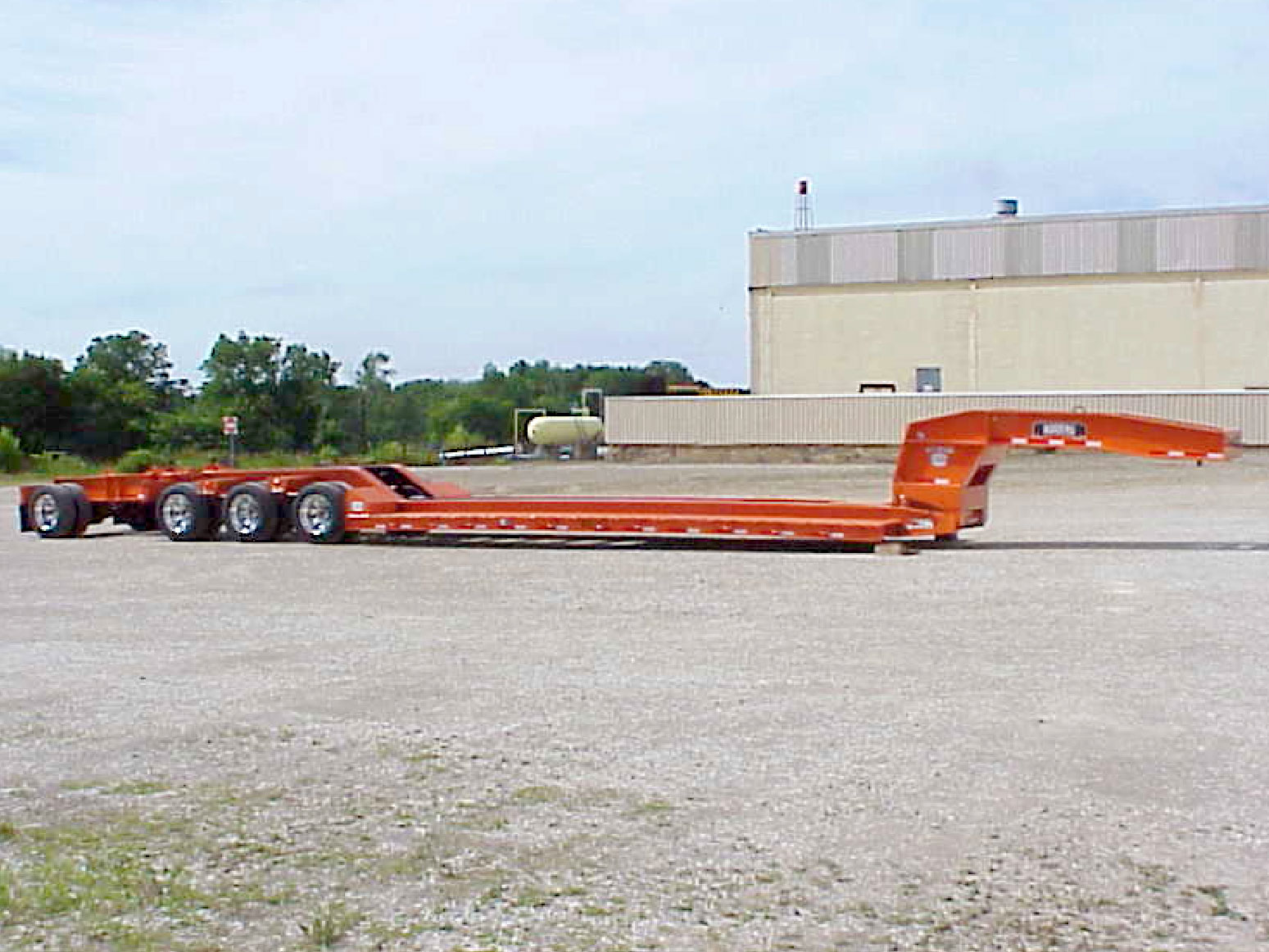

This 55-ton capacity ROGERS specialized lowboy features a 3 + 1 axle configuration to meet certain state weight law restrictions.
The patented "No Foot"® gooseneck is designed to use low hydraulic pressures to lift the load without having to shift its position on the deck.
The cambered drop side deck height can be as low as 15" in the normal ride condition.
The patented "No Foot"® gooseneck is designed to use low hydraulic pressures to lift the load without having to shift its position on the deck.
The cambered drop side deck height can be as low as 15" in the normal ride condition.
Internal Code
SP55DS110/52/25/102/3XARBARR4
Code
660-000
Name
SP55DS-BA-R4
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
55
Capacity
55.0-ton (49.9-tonnes)
Deck Style
Drop Side
Deck Length
25'-0" (7.6-meter)
Deck Height LD
15" (0.4-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
110,000-pounds (49,895 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3+1 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 aluminum outside/steel inside
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Optional Equipment Link
No Standard Optional Equipment Available
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|

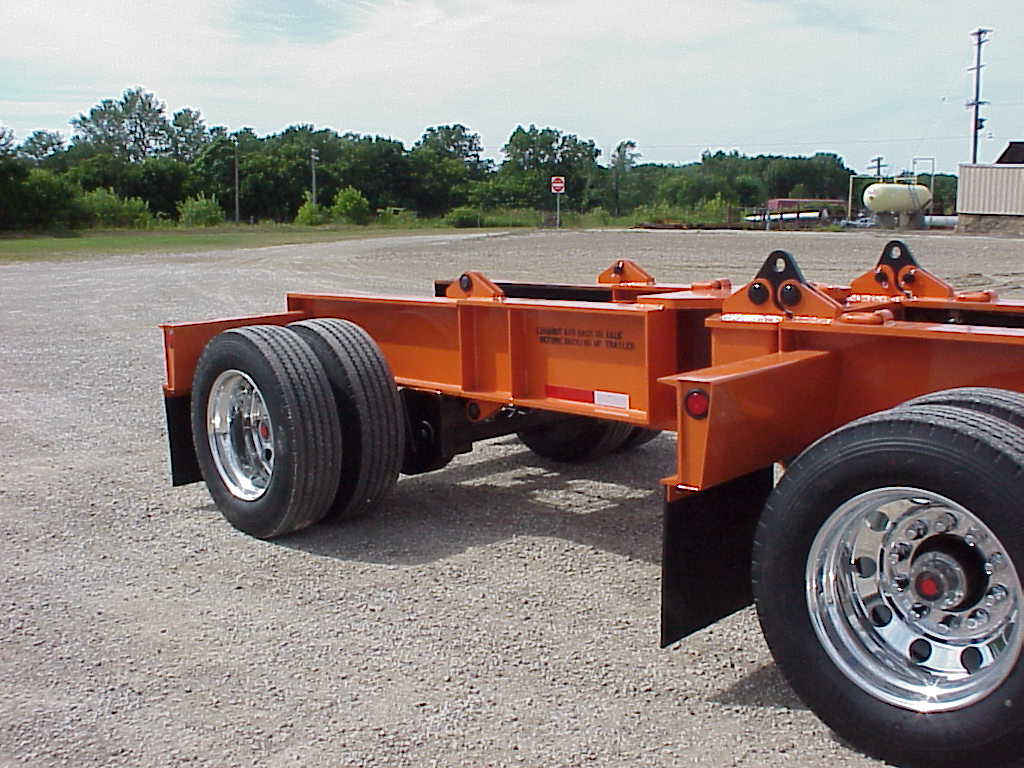

This booster axle assembly is designed so the trailing axle can be unpinned and connected directly to the trailer. The booster creates up to a 14'-1" spread between the center of the last rear axle and the trailing axle. Customer specified aluminum dis |
|
|
|
|

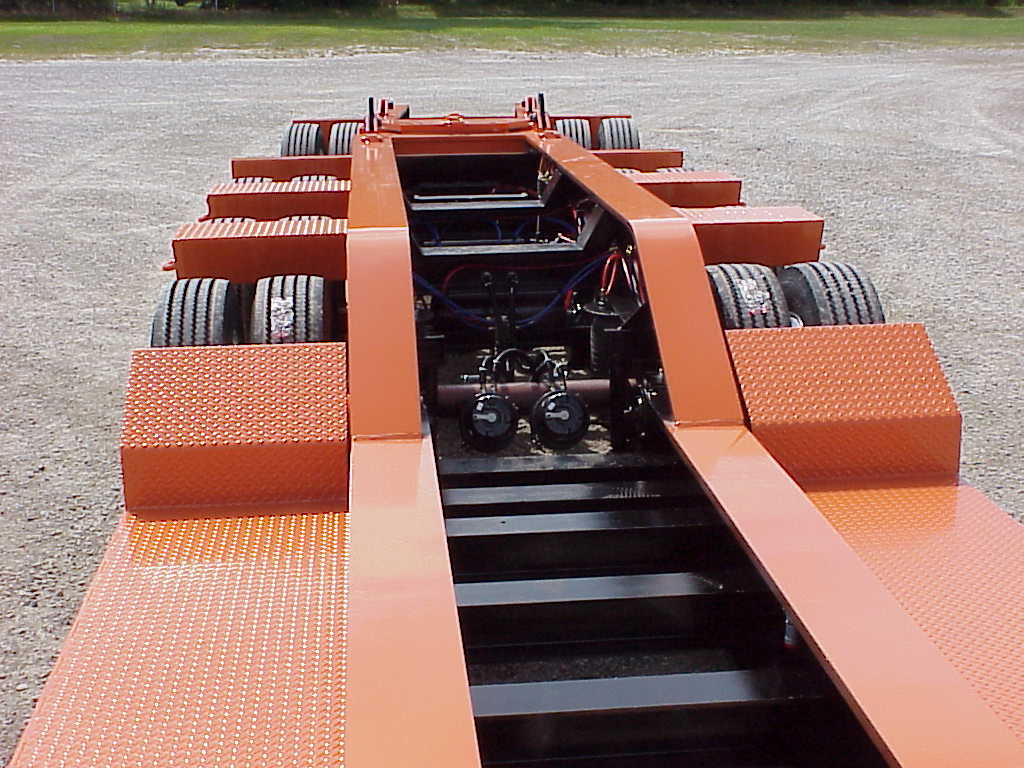

Lowered cross members in the rear frame, the "boom trough," offer lower transport of large excavators. The drop side design has tread plate instead of wood for lower deck height. The special bridge ramps helps scrapers "climb" on to the rear frame. |
|
|
|
|

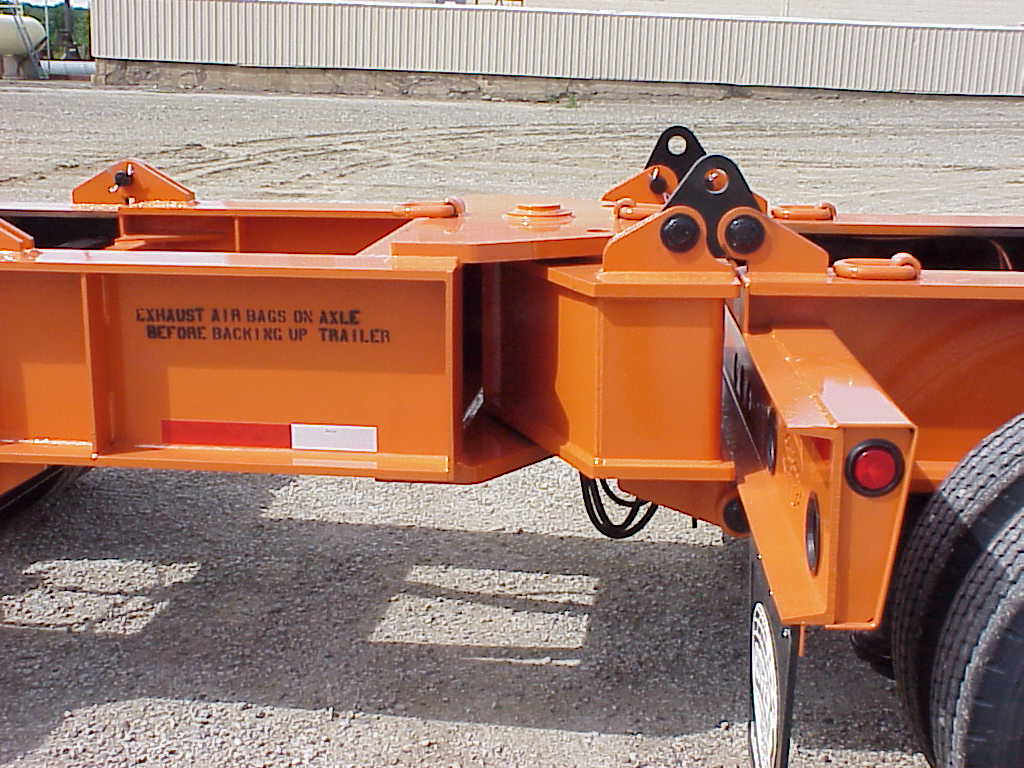

The booster axle assembly has a pivoting "knuckle" which enables the trailing axle to swivel for better maneuvering. The pivot point is close to the trailer to increase the turning radius and reduce tire scuffing. Two large pins can be placed to lock |
|
|
|
|

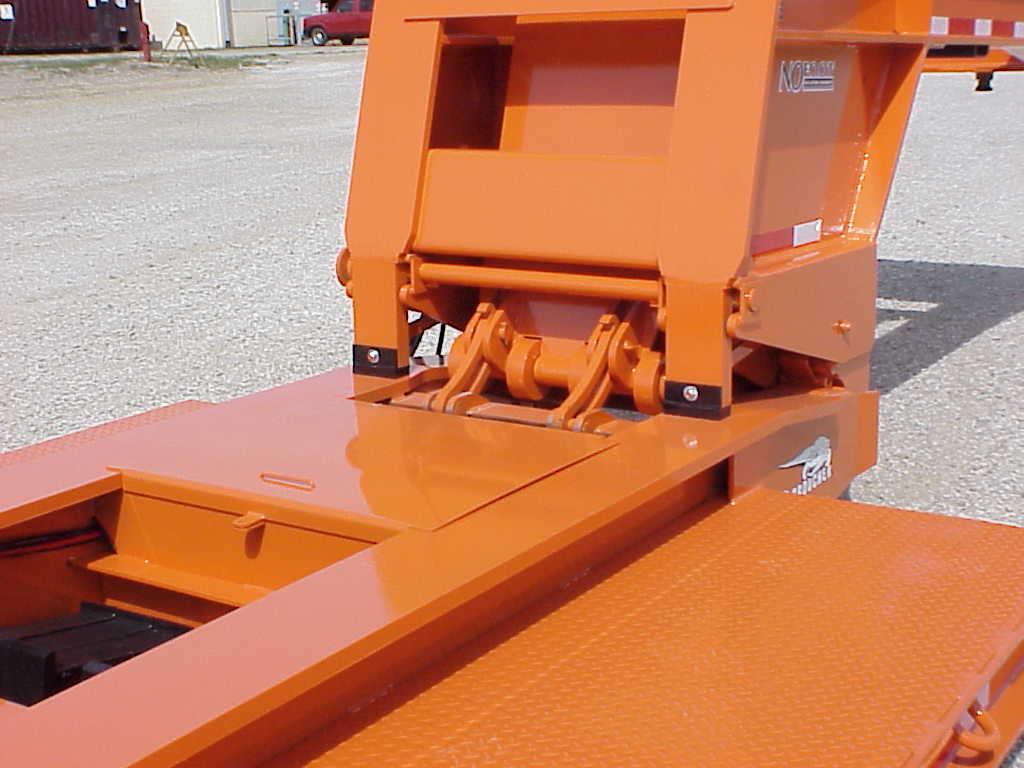

The toolbox in the deck with a lockable steel cover holds removable side brackets. |
