75-ton SP75DS-4XAR, Detachable Gooseneck Trailer
Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
Feature Photo Description
This 75-ton lowbed has the powerful "No Foot"® detachable gooseneck, drop side deck of 1/4" tread plate, and sloped bridge ramps before the tires.
Its load concentration is 150,000 lb. in 14'-0" – half the length of the deck.
Its load concentration is 150,000 lb. in 14'-0" – half the length of the deck.
Internal Code
SP75DS110/52/27/126/4XAR
Code
022-002
Name
SP75DS-4XAR
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
75
Capacity
75.0-ton (68.0-tonnes)
Deck Style
Drop Side
Deck Length
27'-0" (8.2-meter)
Deck Height LD
15" (0.4-meter)
Deck Width
10'-6" (3.2-meter)
Load Con Weight
150,000-pounds (68,039 kilograms)
Load Con Length
14'-0" (4.3-meter)
Axles
4 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
315/80R22.5(L) low-profile tubeless radial
Wheels
22.5 x 9.00 10-hole aluminum disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Optional Equipment Link
No Standard Optional Equipment Available
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|

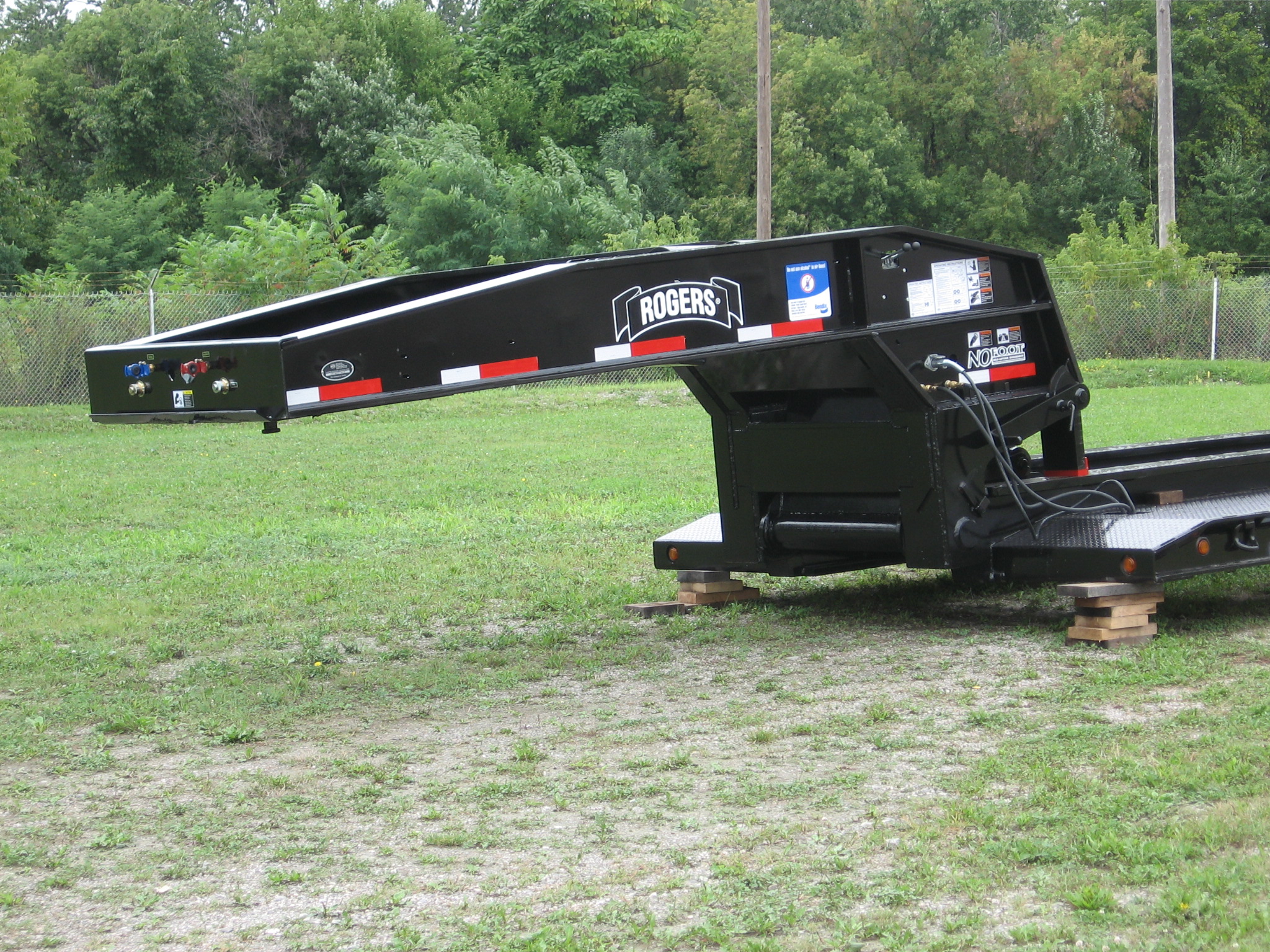

This "No Foot"® is the strong Tower Style non-ground engaging gooseneck. The sloped front end of the main beams is 1/4" tread plate. |
|
|
|
|

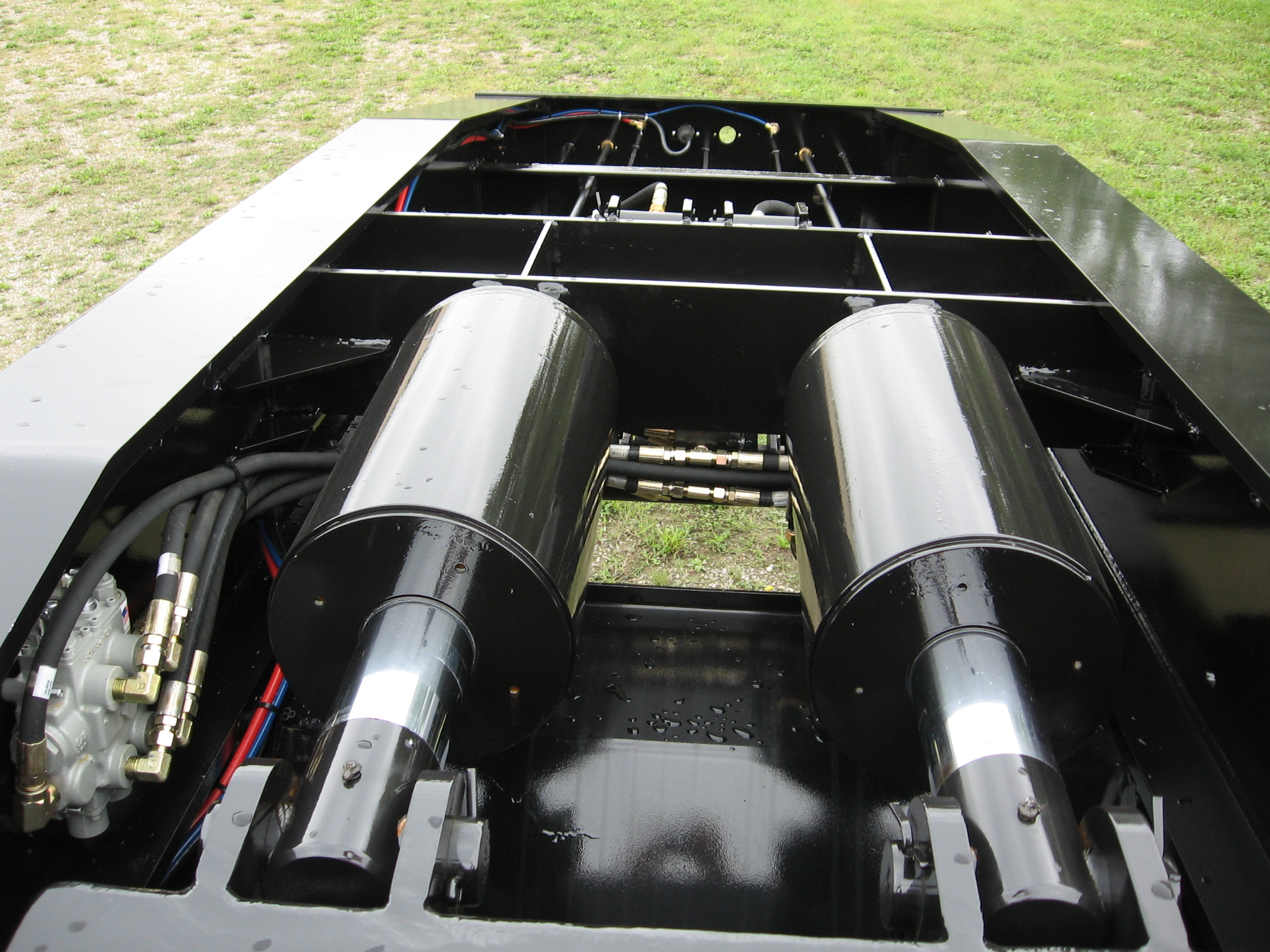

The "No Foot"® Tower Style has two large cylinders that provide the needed lifting power at low hydraulic pressures. |
|
|
|
|

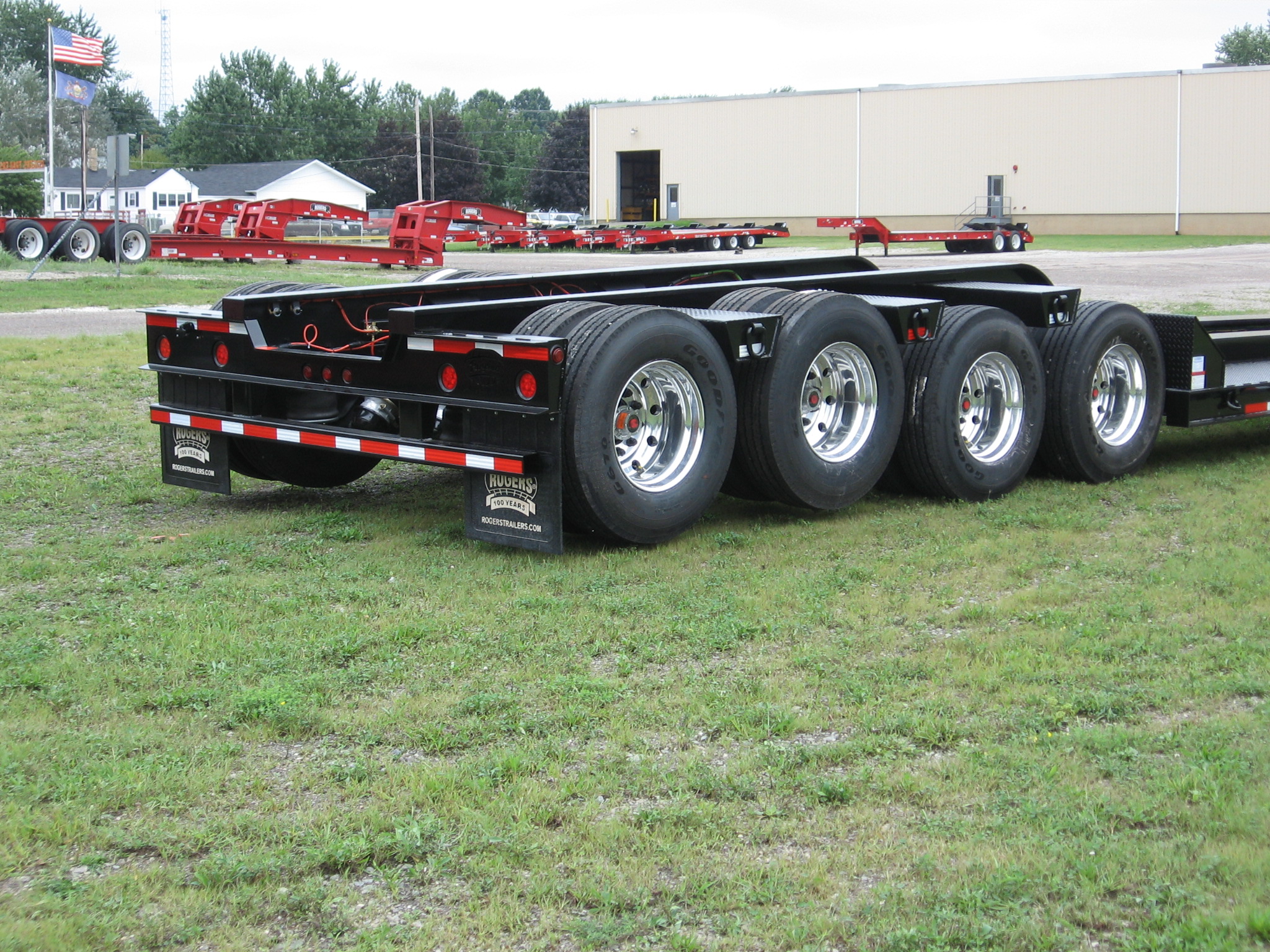

The 4-axle rear frame is equipped with air ride suspension. Air lifts on the 3rd and 4th axles enable the empty trailer to ride on just the first two axles. Air lifts save on tire wear and improve fuel efficiency. Aluminum disc wheels save weight and " |
|
|
|
|

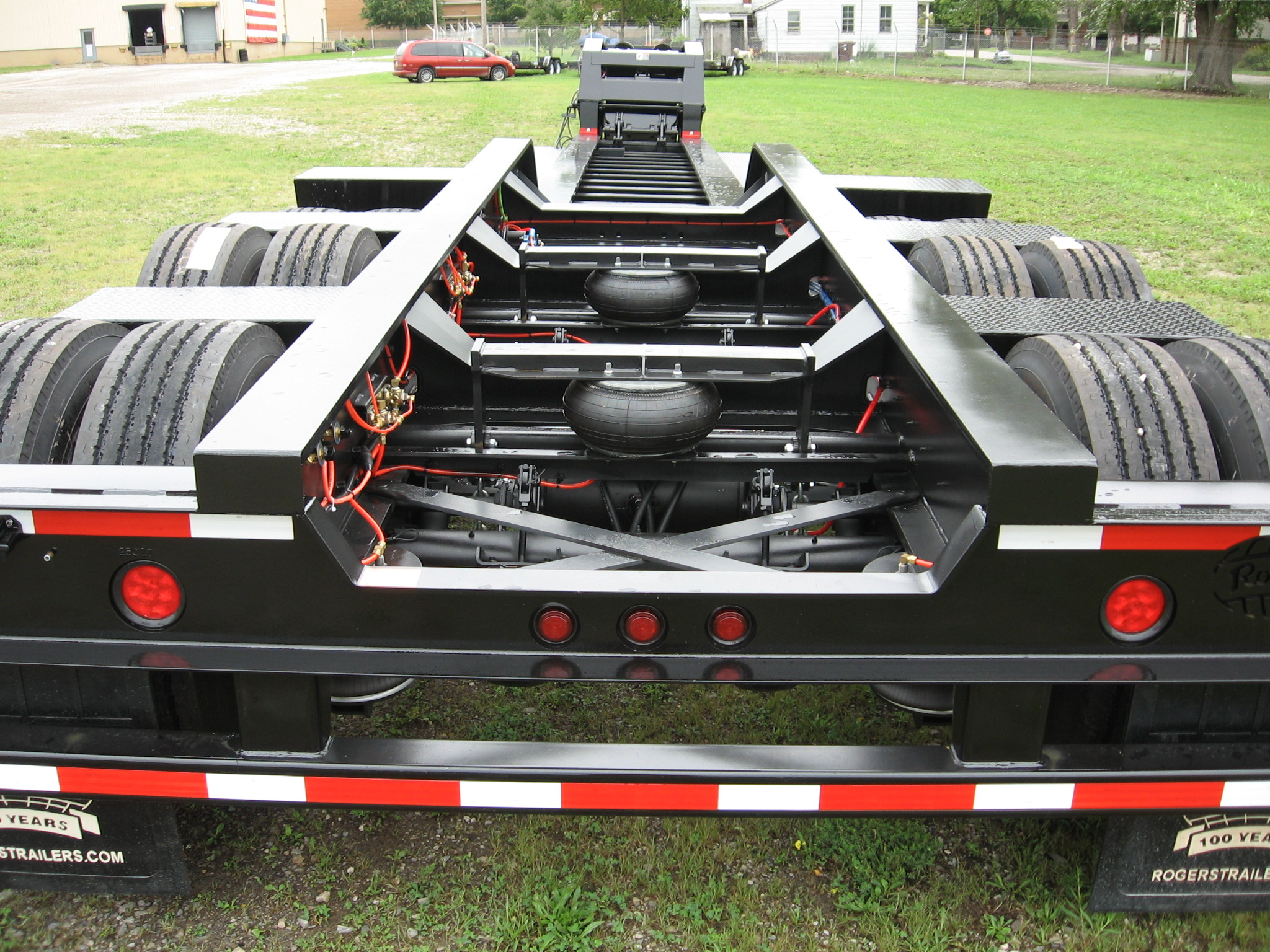

A low, wide "boom trough" makes a loading space for an excavator's boom and increases overhead clearance. LED lights and a rear impact guard complete this trailer. |
Request a Quote for 75-ton SP75DS-4XAR, Detachable Gooseneck Trailer, Model Code 022-002
