100-ton SP100CT-4XSP, Specialized Trailer
Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
Feature Photo Description

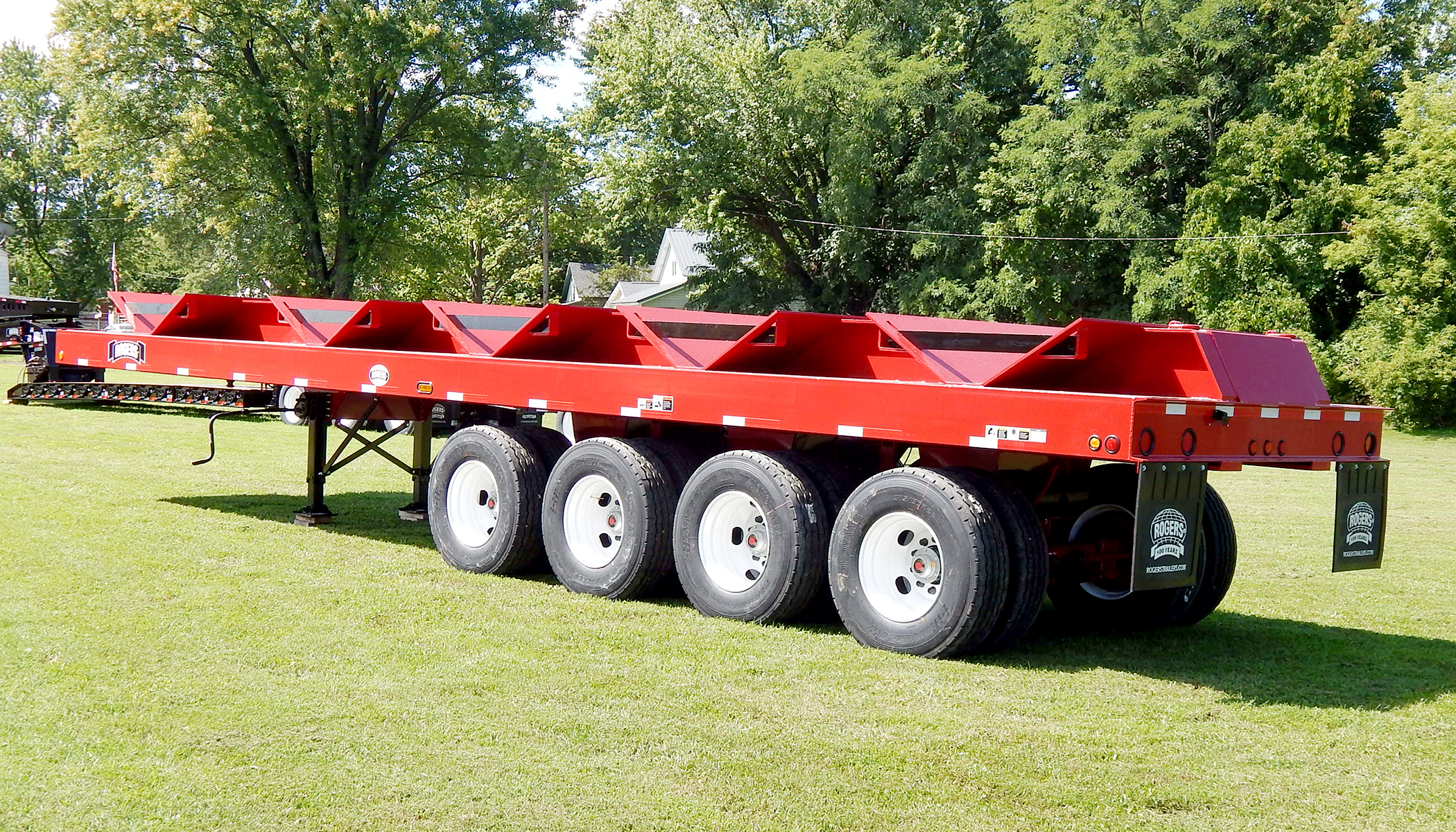

This ROGERS® 100 ton trailer is specially designed to carry steel coils safely and efficiently within a steel manufacturing facility. The five wells are each designed to carry coils of up to 60" diameter positioned "eye to the side" for easy loading and unloading.
Quad-axle combination spring & walking beam suspension provides reliable performance and durability.
A variety of configurations and capacities are available - contact us for details!
Quad-axle combination spring & walking beam suspension provides reliable performance and durability.
A variety of configurations and capacities are available - contact us for details!
Internal Code
SP100CT86/46/39/102/4XSP
Code
105-008
Name
SP100CT-4XSP
Model Series
Custom Series
Trailer Type
Specialized
Trailer Use
Coil Trailer
Tons
100
Capacity
100.0-ton (90.7-tonnes)
Deck Style
Custom
Deck Length
39'-0" (11.9-meter)
Deck Height LD
75" (1.9-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
200,000-pounds (90,718 kilograms)
Load Con Length
38'-0" (11.6-meter)
Axles
4 axles
Suspension
120,000 lb. capacity four axle severe-duty spring walking beam
Axle Type
30,000 lbs. capacity with oil-bathed bearings
Tires
315/80R22.5(L) low-profile tubeless radial
Wheels
22.5 x 9.00 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
- Full-width fixed gooseneck with 86" swing clearance and 46" light 5th wheel height
- Single coil well mounted to top of gooseneck
- Heavy-duty two-speed landing gear set
- Four coil wells mounted to top to deck
- Anti-skid on load surfaces of all coil wells
- 120,000 lbs. capacity quad axle combination spring/walking beam suspension
- 30,000 lbs. capacity each axle
- 315/80R22.5 (L) tires with 22.5 x 9.0 hub-piloted steel disc wheels
- 4S/2M Anti-lock brake system with 16 1/2" x 7" rising 'S' cam drum brakes
- Automatic slack adjusters
- Type 30/30 spring brakes on (1) axle
- US-DOT approved 12-volt LED light system
- Single coil well mounted to top of gooseneck
Optional Equipment Bullets
- A variety of capacities and coil well configurations are available for this trailer - contact us for details!
Optional Equipment Link
No Standard Optional Equipment Available
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|
A total of five coil wells provide versatility and ease of loading and unloading of steel coils. |
|
|
|
|

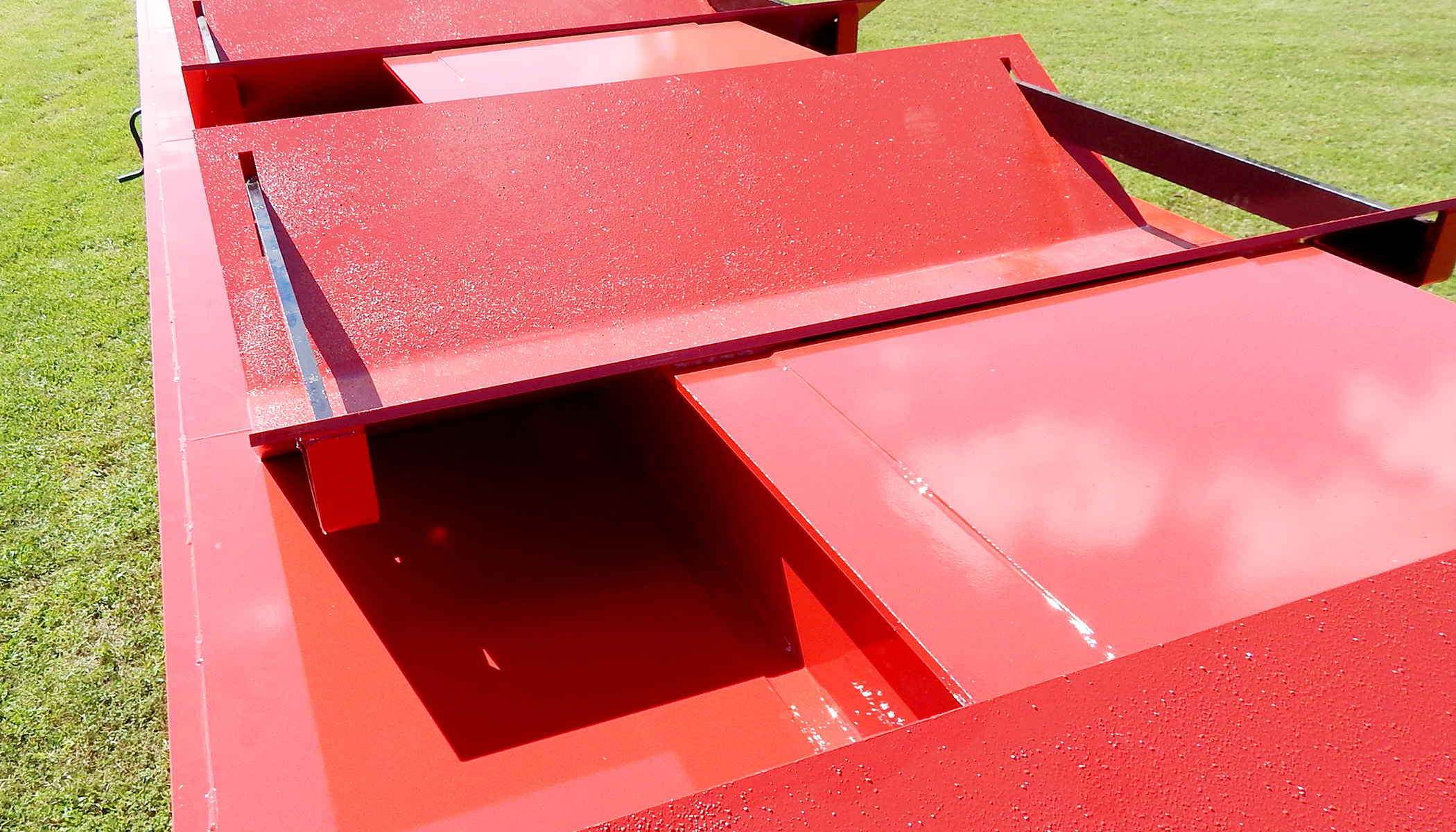

Coil wells are made with high strength steel and coated with anti-skid on load surfaces. |
|
|
|
|

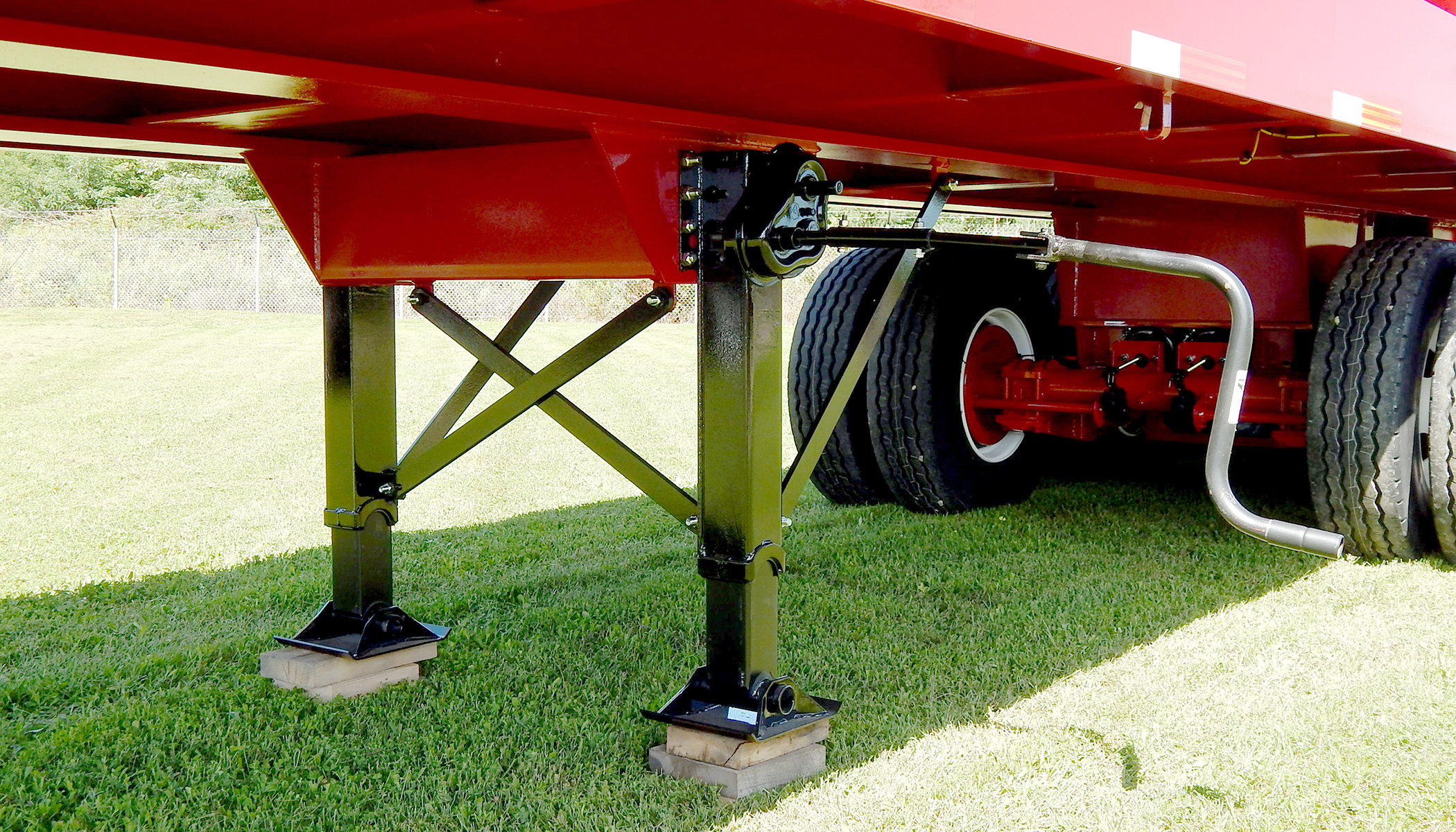

Heavy-duty two-speed landing gear set |
|
|
|
|

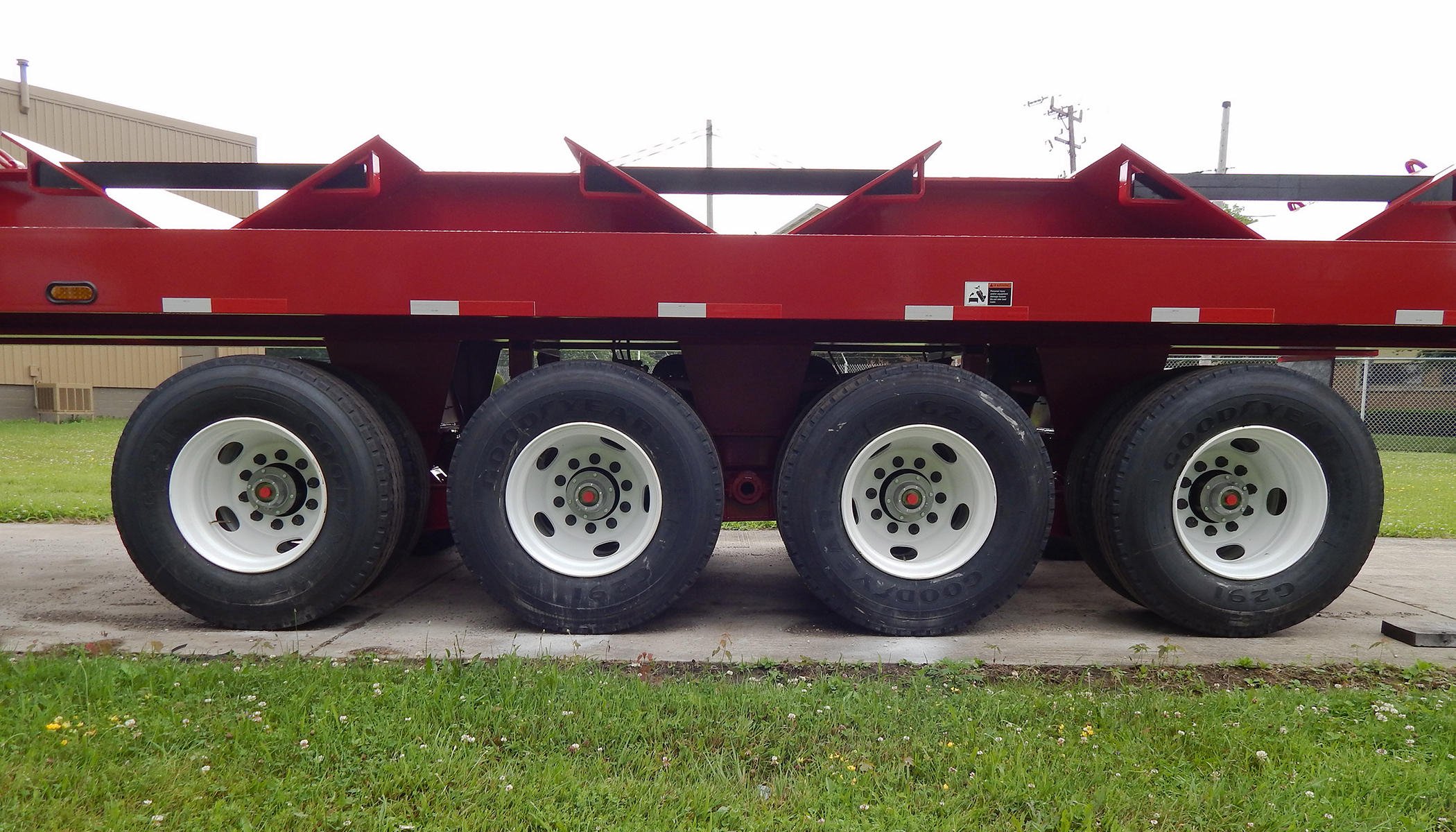

SAF-Holland TR4120 suspension has a 120,000 lbs capacity and is built for superior durability. |
