55-ton CN55DS, Detachable Gooseneck Trailer
Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
Feature Photo Description

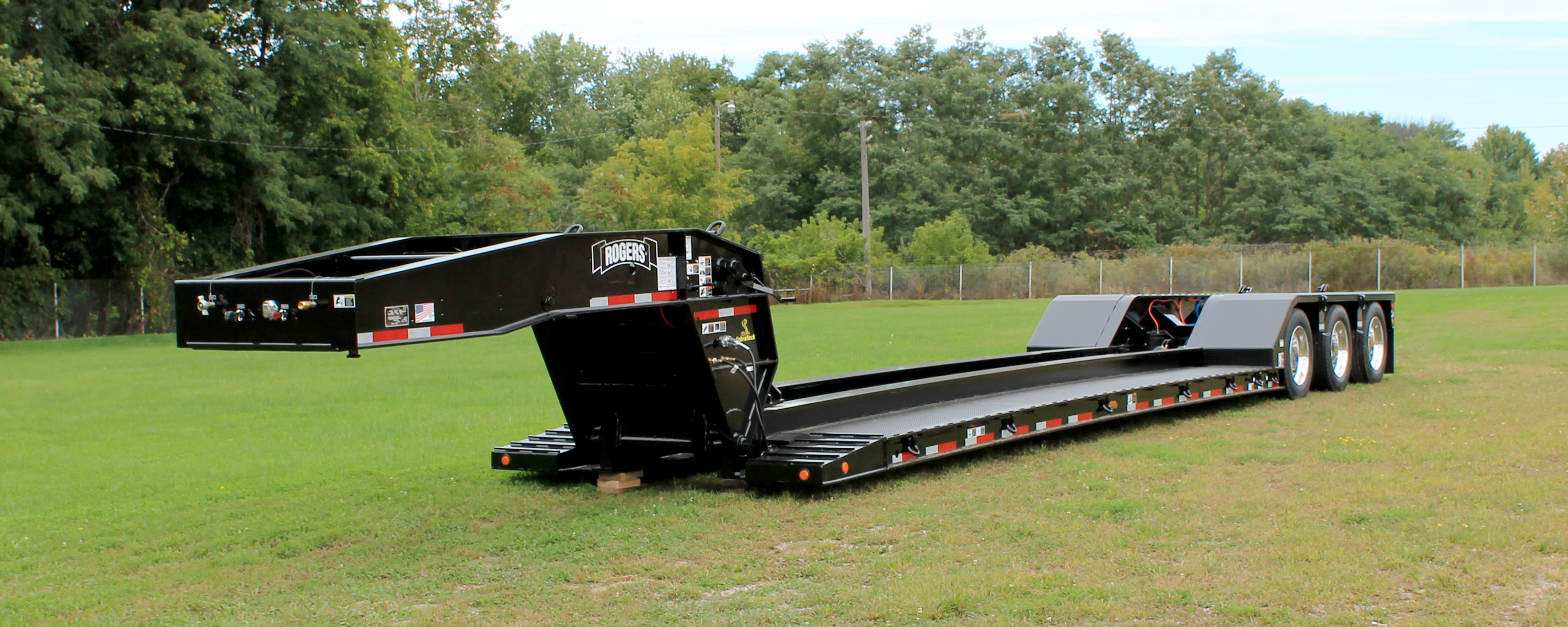

The ROGERS CobraNeck Series CN55DS is a severe-duty 55-ton capacity lowbed semi-trailer that features drop side deck for the lowest possible loaded deck height and the "CobraNeck" gooseneck which adds readily adjustable deck heights along with ease of operation. The trailer is designed with a full capacity load concentration in one half the deck length for many years of worry free operation. The drop side deck features a 15" loaded height and tapered front slope for easy loading and unloading of equipment. The full-depth "Bucket Pocket" at the rear of the platform deck facilitates hauling of excavators and similar machinery. This model is also structurally designed to be used with a removable/flip 4th axle when required.
Internal Code
CN55DS110/51/26/102/3XAR
Code
586-001
Name
CN55DS
Model Series
CobraNeck™ Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
55
Capacity
55.0-ton (49.9-tonnes)
Deck Style
Drop Side
Deck Length
26'-0" (7.9-meter)
Deck Height LD
15" (0.4-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
110,000-pounds (49,895 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole hub piloted steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
- CobraNeck gooseneck
- Hydraulic gooseneck jack with shoe
- Hydraulic power source: Tractor PTO
- Four-beam cambered design with 15" loaded drop side deck height
- 14" wide flange main carrying beams made with T1 (A514) flanges
- Exclusive "Croucher"® low, tapered front with concealed beam hooks
- 1/4" tread plate steel deck
- Total (28) heavy-duty removable side brackets
- Total (12) bent lashing D's (6 each side of deck)
- Full-depth "Bucket Pocket" at rear of deck
- Air lift axle - 3rd axle
- LED lights: US DOT-approved 12-volt rubber grommet mounted with sealed wiring and 7-wire socket
- Remote air tank drain
- Epoxy primer; Rogers Red or Black polyurethane finish coat
- Hydraulic gooseneck jack with shoe
Optional Equipment Bullets
- Removable/flip 4th axle
- Gooseneck fenders
- 13 HP gas engine power unit
- Air suspension dump valve
- Front folding ramps - wood or steel covered, laterally adjustable (shown)
- Fixed (welded) front ramp wedges
- Toolboxes - can be located in gooseneck or deck
- Wide/Oversize Load sign and mounting bracket
- Aluminum disc wheels
- Spare tire & disc wheel
- Spare tire carrier mounted on gooseneck
- Auxiliary lighting system with deep cycle battery
- Stop/turn/tail light package mounted to rear of gooseneck
- Backup warning alarm, electronic or mechanical
- Other ROGERS and custom paint colors available
- Gooseneck fenders
Optional Equipment Link
No Standard Optional Equipment Available
Detail Photo | Detail Bullets | ||
---|---|---|---|
|
|

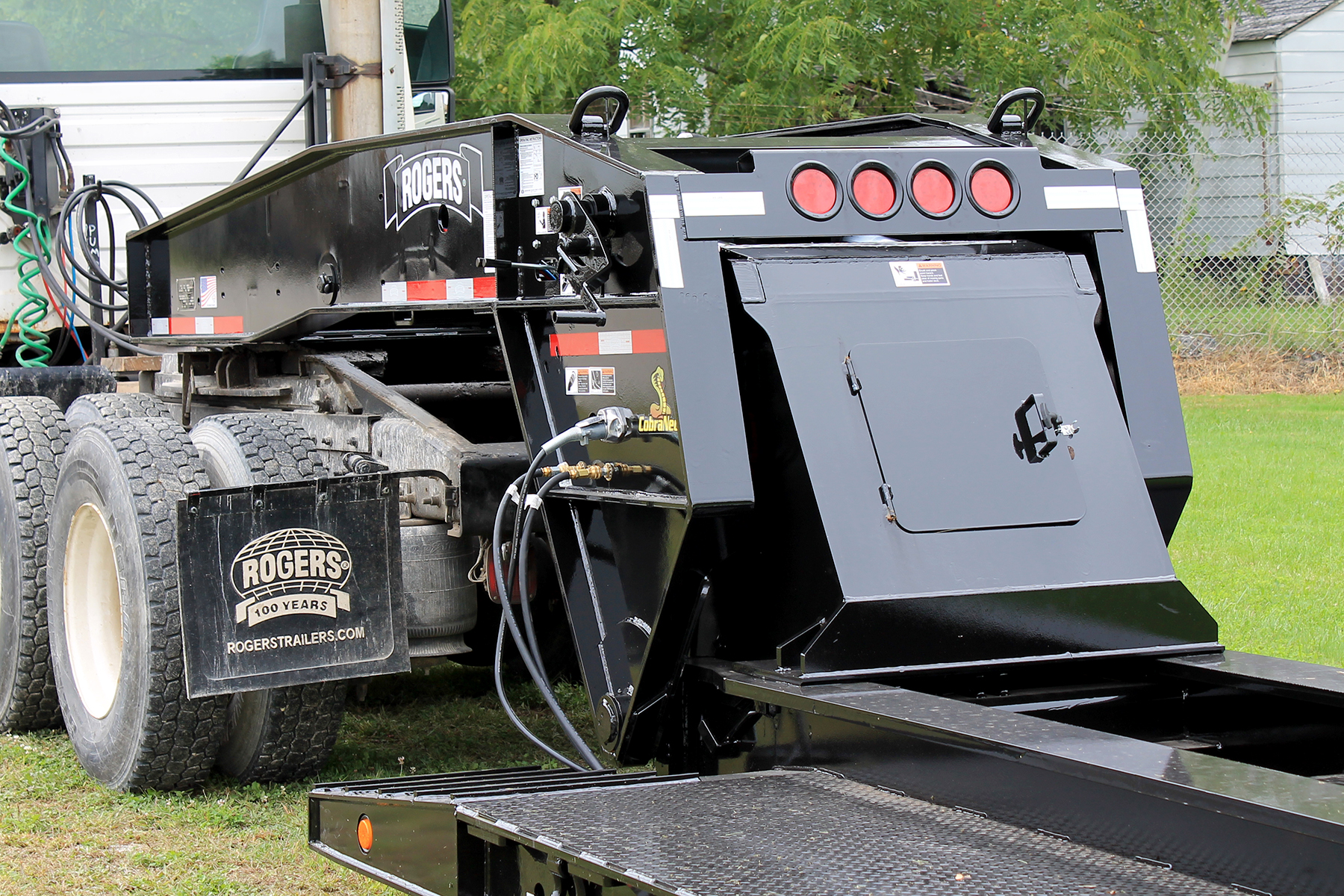

ROGERS CobraNeck gooseneck features easy to adjust deck/5th wheel heights and simple operation. |
|
|
|

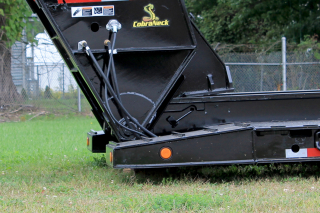

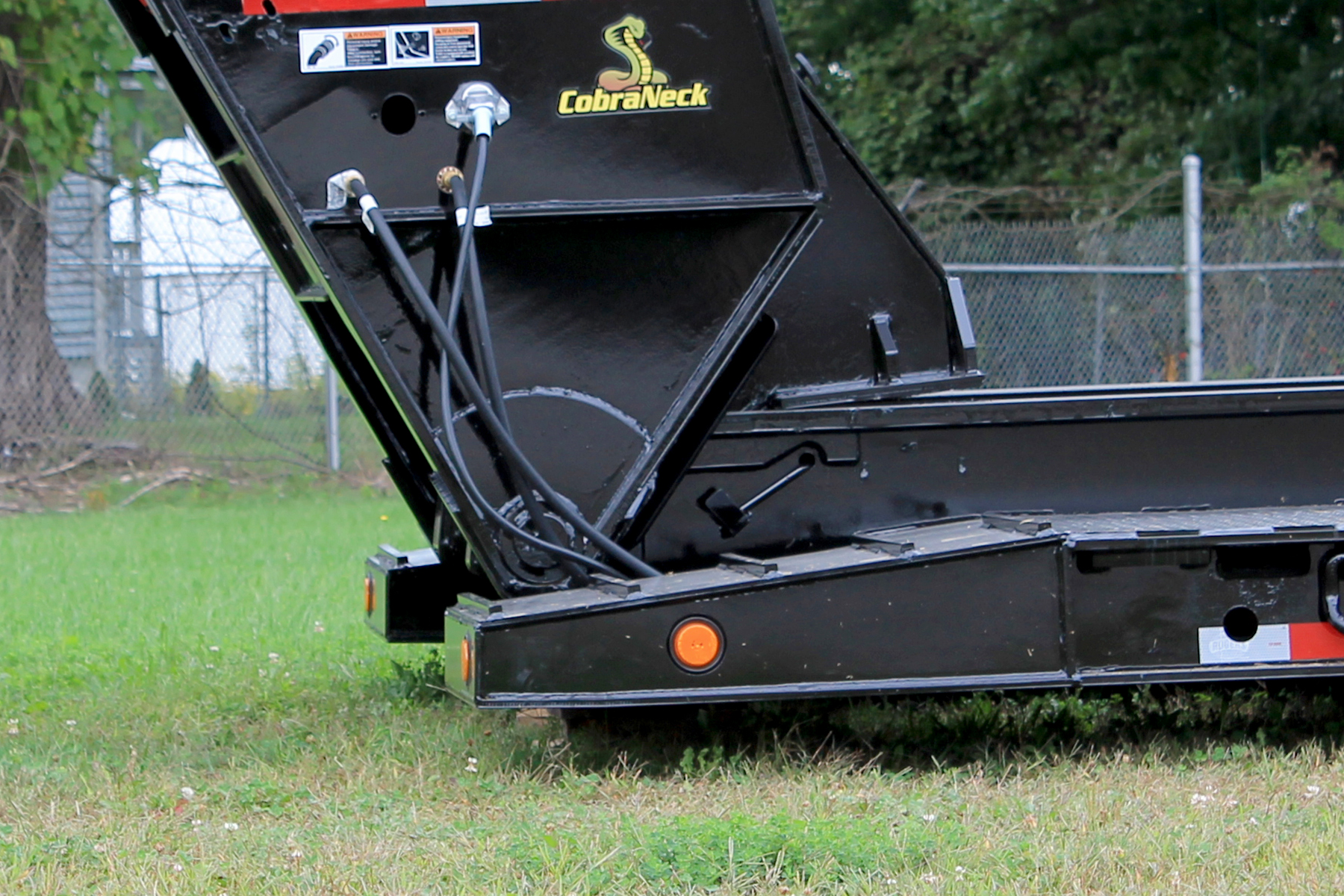

Tapered front slope makes loading of machinery safer and easier. |
|
|
|

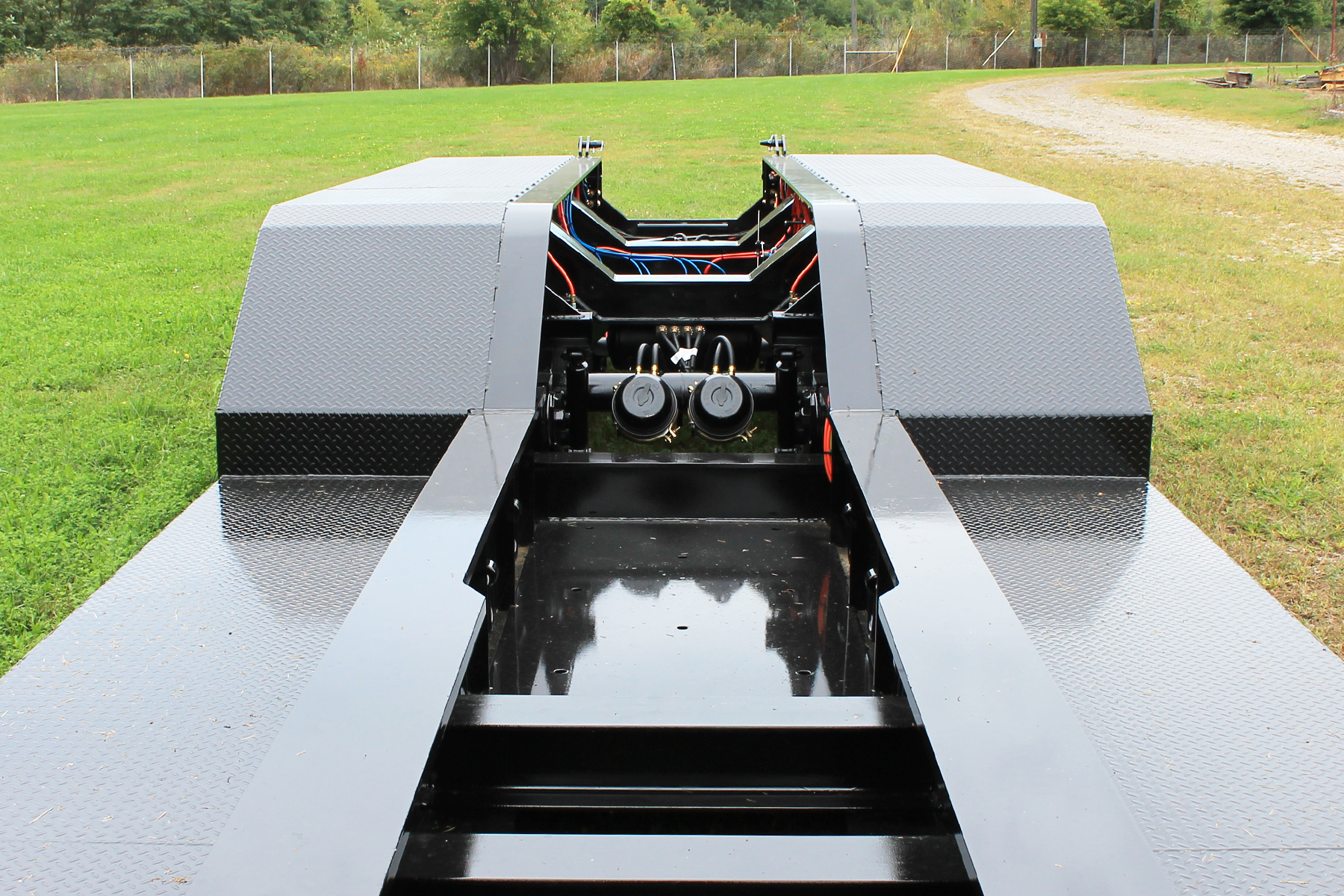

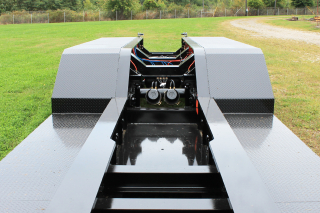

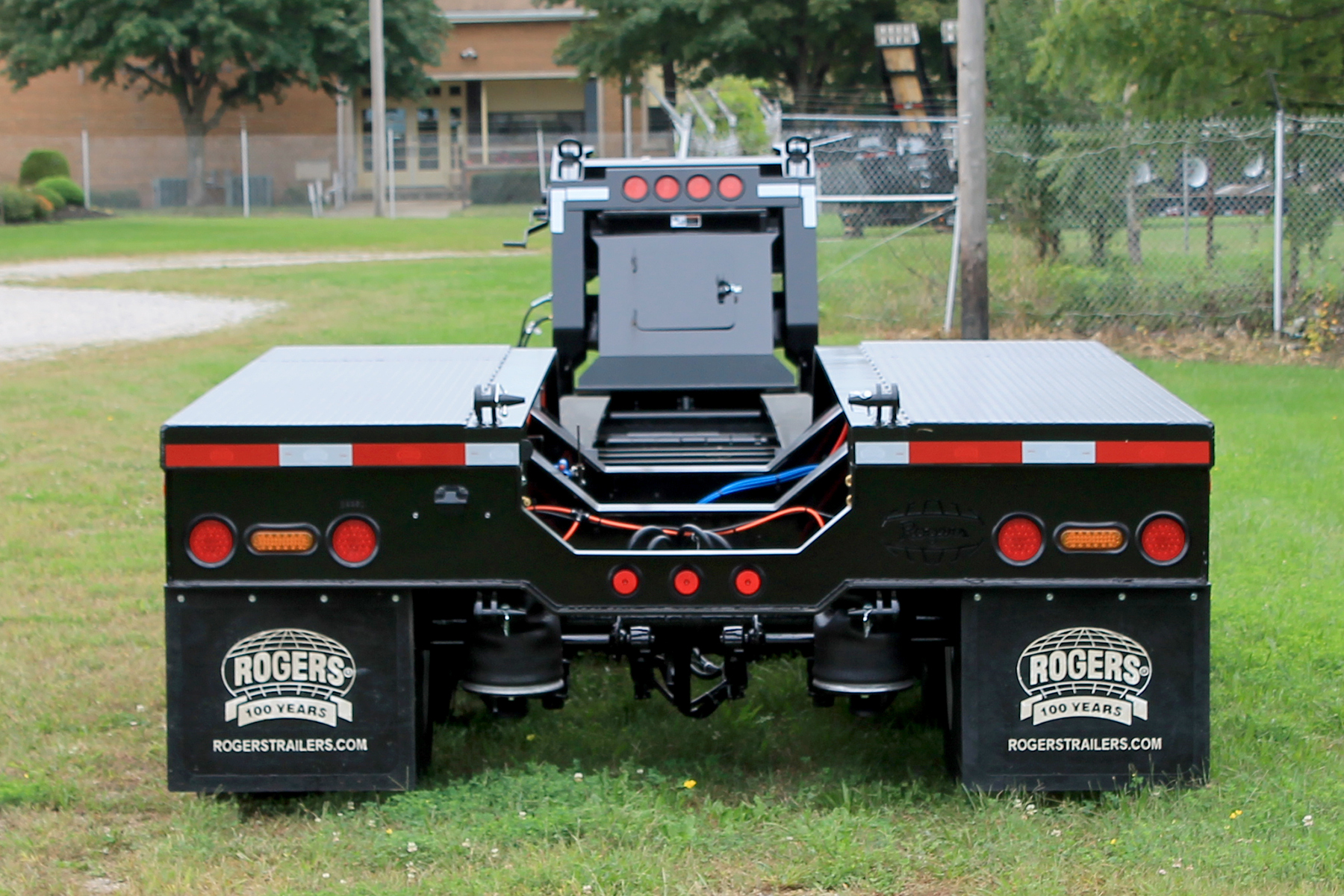

Full-depth "Bucket Pocket" with extra wide opening allows loading of excavators to minimum overall height possible. |
|
|
|

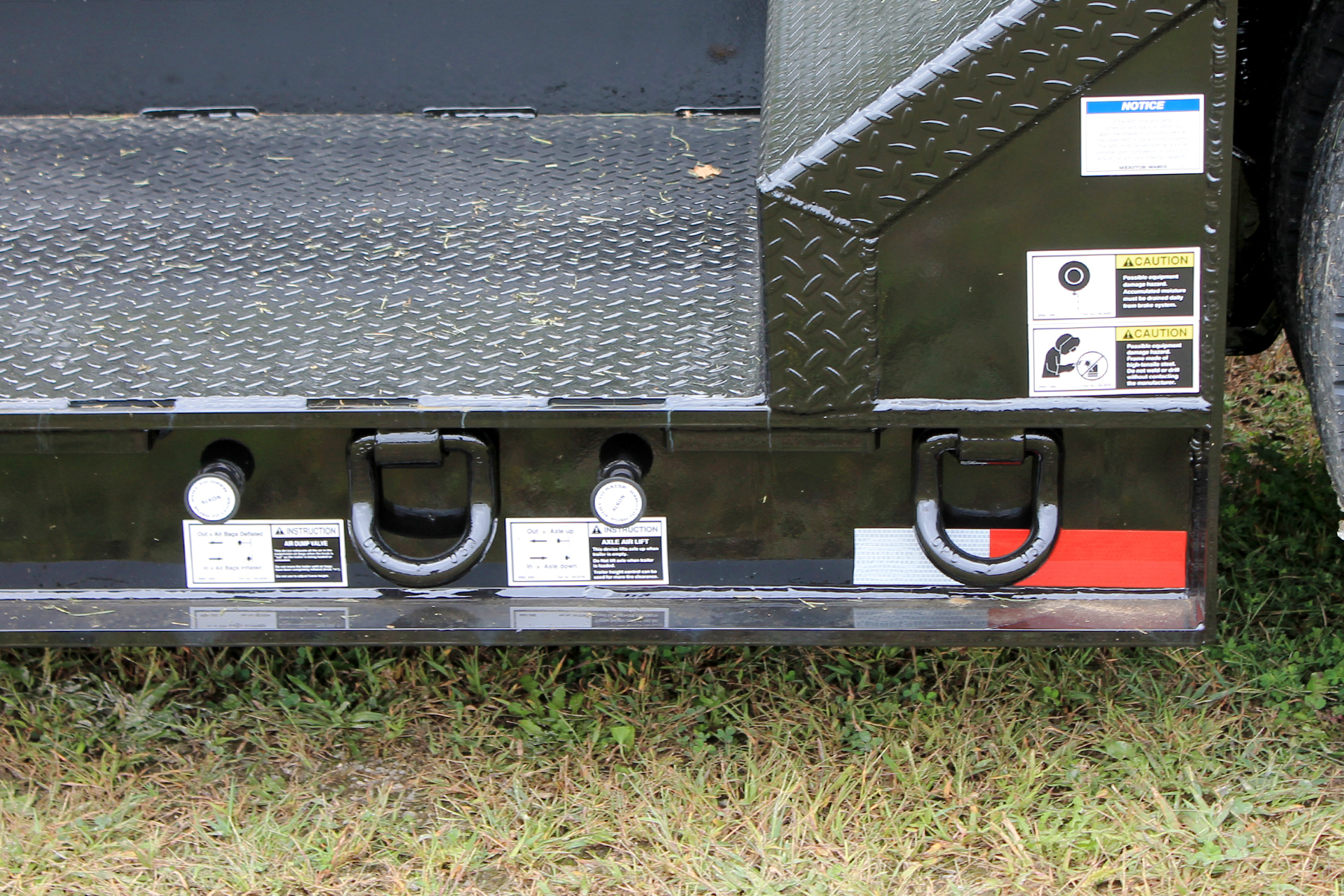

Air valves for 3rd axle air lift and suspension dump valve are conveniently located at the rear curbside of the trailer deck for easy access. |
|
|
|

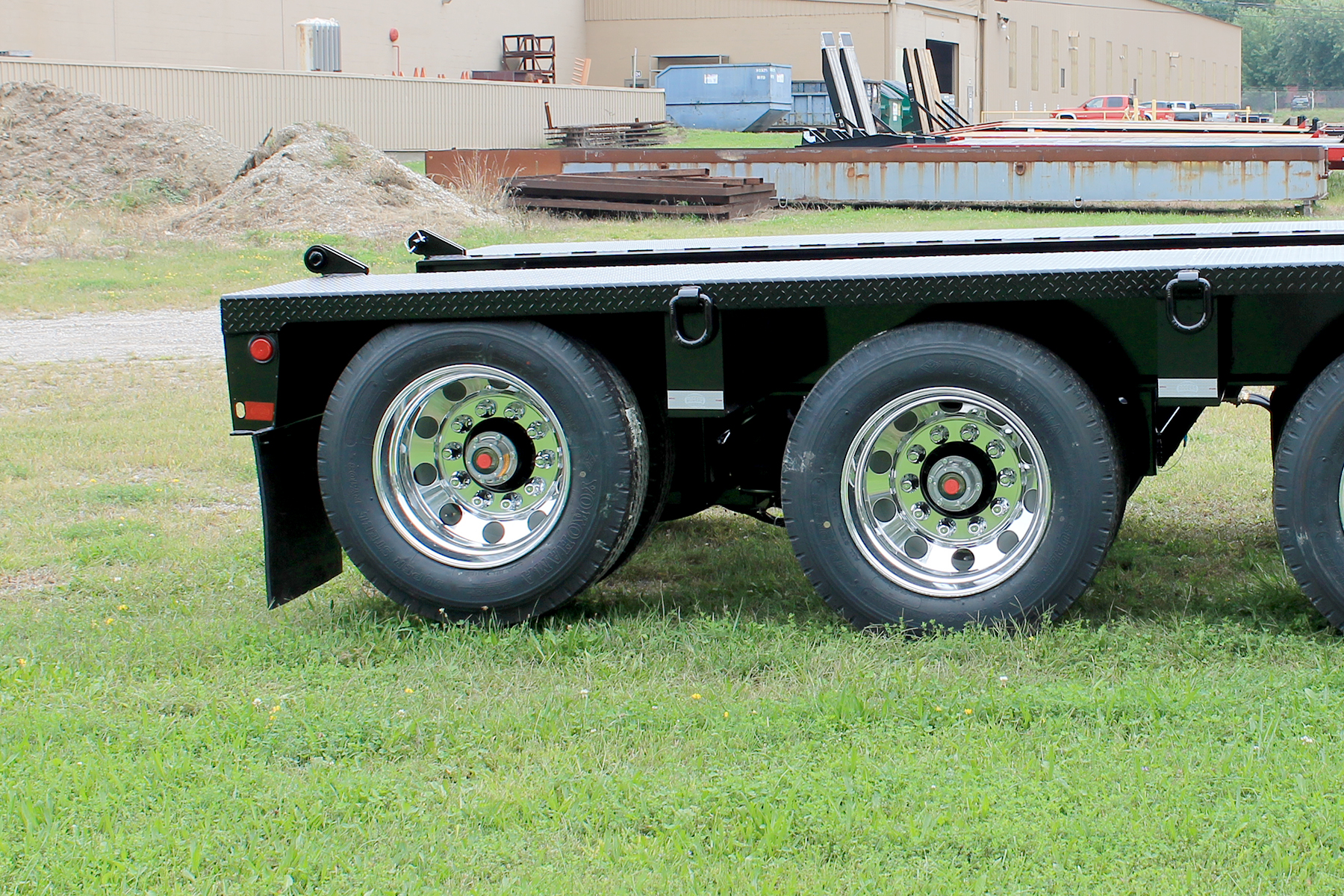

Air lift on 3rd axle allows the trailer to be operated as a tandem when empty of lightly loaded. |
|
|
|
"V" Style lowered cross beams in the trailer rear frame provide lower loading profile for excavator booms. 12v LED lights are standard equipment and LED strobe lights with toggle switch are available. |
